#7 Solo Review + fuzzing: Reliquary Staking Updates



A time-boxed security review of the Reliquary Staking Updates was done by Beirao, with a focus on the security aspects of the application's smart contracts implementation.


A smart contract security review can never verify the complete absence of vulnerabilities. This is a time, resource and expertise bound effort where I try to find as many vulnerabilities as possible. I can not guarantee 100% security after the review or even if the review will find any problems with your smart contracts. Subsequent security reviews, bug bounty programs and on-chain monitoring are strongly recommended.

About Beirao

I’m an independent smart contract security researcher. I extend my skills as a contractor specializing in EVM smart contracts security. If you're in need of robust code review, I'm here to help. We can get in touch via Twitter or Email.

About Reliquary Staking Updates

My first Reliquary review can be found here.

Reliquary is an improvement of the famous MasterChef contract. The goal is to distribute a reward token proportional to the amount of a user's deposit. The protocol owner can credit the contract with the reward token and set the desired issuance per second.

Compared to Masterchef, the Reliquary contract offers more flexibility and customization:

From the README

  1. Emits tokens based on the maturity of a user's investment, separated in tranches.
  2. Binds variable emission rates to a base emission curve designed by the developer for predictable emissions.
  3. Supports deposits and withdrawals along with these variable rates, which has historically been impossible.
  4. Issues a 'financial NFT' to users which represents their underlying positions, able to be traded and leveraged without removing the underlying liquidity.
  5. Can emit multiple types of rewards for each investment, as well as handle complex reward mechanisms based on deposit and withdrawal.

The Reliquary Staking Updates:

  • adds support for Thena LP tokens with automatic investment in Thena Gauge.
  • Improved support for rewarder modules
  • New "rolling" rewarder that use the same Reliquary reward logic


There are still some parts of the rolling rewarder logic (parent and child) that are not well covered by unit tests. Some high severity issues could have been caught with more testing. I strongly recommend improving the test suite before deployment.

Privileged Roles & Actors


  • Admin roles (All set to the same multisig):
    • DEFAULT_ADMIN_ROLE: can add new pools
    • OPERATOR: can modify pools
    • EMISSION_CURVE : can modify the emission curve
  • User:
    • open/close/manage position

Parent RewarderRolling

  • Admin roles:
    • REWARD_SETTER: can set a new reward multiplier for the parent reward token
    • CHILD_SETTER: can set a new child rewarders

child RewarderRolling

  • Admin roles:
    • owner: can update distribution period

Severity classification

SeverityImpact: HighImpact: MediumImpact: Low
Likelihood: HighHighHighMedium
Likelihood: MediumHighMediumLow
Likelihood: LowMediumLowLow

Impact - the technical, economic and reputation damage of a successful attack

Likelihood - the chance that a particular vulnerability gets discovered and exploited

Severity - the overall criticality of the risk

Security Assessment Summary

review commit hash - 856d629a

fixes review commit hash - 595ac20c

Deployment chains

  • Optimism


The following smart contracts were in scope of the audit: (total : 1017 SLoC)

  • contracts/Reliquary.sol
  • contracts/rewarders/ParentRewarder-Rolling.sol
  • contracts/rewarders/RollingRewarder.sol
  • contracts/rewarders/RewardsPool.sol

Findings Summary

Summary :

  • 3 Highs
  • 1 Medium
  • 3 Lows
[H-01]thenaReceiver can’t claim gauge rewardsfix
[H-02]Shift() function is shifting Levels incorrectlyfix
[H-03]rewardCredit[] is not reset in onRewardfix
[M-01]onHooks do not account for the parents reward token (only onReward do)fix
[L-01]withdrawAndHarvest() don't work since you don't call withdrawFromGauge() in itfix
[L-02]Once enable, admin can't disable a gauge.fix
[L-03]Anyone can delay the issuance of rewards at low costfix

Invariants implemented with Echidna

  • ✅ A user should never be able to withdraw more than deposited.
  • ✅ No position.entry should be greater than block.timestamp.
  • ✅ The sum of all position.amount should never be greater than total deposit.
  • ❌ [H-02] The sum of balances in levels should never be greater than total deposit.
  • ✅ All arrays defining pools should be equal in size.
  • ✅ The sum of all allocPoint must be equal to totalAllocpoint.
  • ❌ [H-02] The total reward harvested and pending should never be greater than the total emission rate.
  • ✅ A position amount should never be greater than the level.balance deposited at the position level.

Detailed Findings

[H-01] thenaReceiver can’t claim gauge rewards



You should be using gauge.getReward() instead of gauge.getReward(address user) . The second one is restricted.

thenaReceiver can’t claim gauge rewards here.

proof: GaugeV2.sol#L278-L303


function test_h1() public {

    address user1 = makeAddr("user1");
    deal(address(poolToken), user1, 100 ether);

    IERC20Metadata(address(poolToken)).approve(address(reliquary), type(uint).max);
    reliquary.createRelicAndDeposit(user1, 0, 100 ether);

    skip(7 days);




You will need to add this line in interfaces/IGauge.sol:

function getReward() external;

And change this in libraries/DoubleStakingLogic.sol:

function claimThenaRewards(PoolInfo[] storage poolInfo, address thenaToken, address thenaReceiver, uint256 _pid) public {
        PoolInfo storage pool = poolInfo[_pid];
        if (pool.gaugeInfo.isGauge) {
            // claim the thena rewards
 -          pool.gaugeInfo.gauge.getReward(address(this));
 +          pool.gaugeInfo.gauge.getReward();
            IERC20(thenaToken).safeTransfer(thenaReceiver, IERC20(thenaToken).balanceOf(address(this)));

[H-02] Shift() function is shifting Levels incorrectly



The error is due to passing fromAmount instead of amount in ReliquaryLogic._shiftLevelBalances() , so levels are updated using fromAmount but positions are updated correctly using amount.

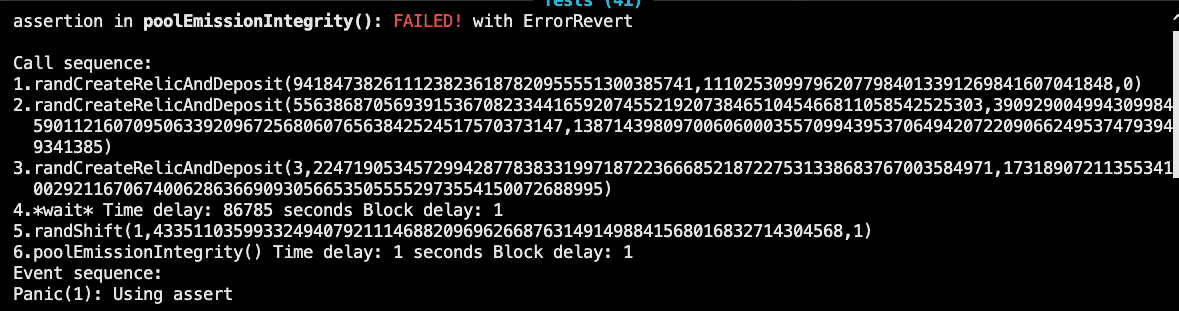

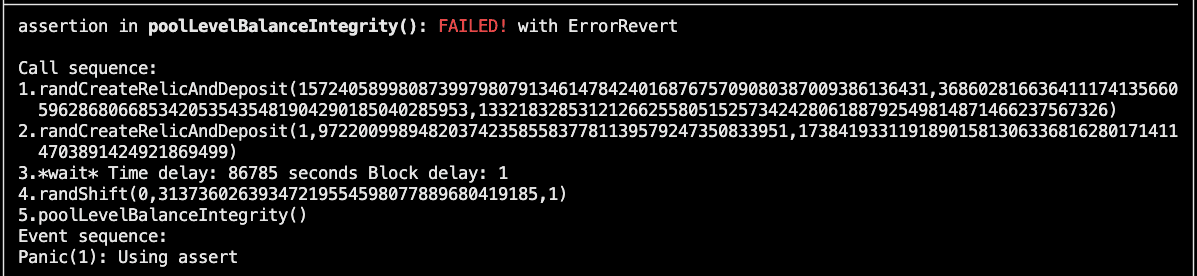

Fuzzing result 1
Fuzzing result 1

This bug creates a global mess in the internal accounting, causing possible deposit and withdrawal DOS.

In addition, fuzzing has shown that the theoretical maximum emission can be exceeded, which is critical.



    -   vars.fromAmount,
		+		amount, //<

[H-03] rewardCredit[] is not reset in onReward



Triggering onReward will yield the rewardCredit of the relicId without any reset. So an attacker is able to call onReward over and over again and drain all the rewardToken balances.


function onReward(
        uint relicId,
        uint, // rewardAmount
        address to,
        uint amount,
        uint oldLevel,
        uint newLevel
    ) external virtual override(IRewarder, SingleAssetRewarder) onlyParent {
        uint256 oldAmountMultiplied = amount * multipliers[oldLevel];
        uint256 newAmountMultiplied = amount * multipliers[newLevel];


        uint256 pending = ((oldAmountMultiplied * accRewardPerShare) /
            ACC_REWARD_PRECISION) - rewardDebt[relicId];
        pending += rewardCredit[relicId]; // @audit rewardCredit is not reset

  +     rewardCredit[relicId] = 0 //<

        rewardDebt[relicId] = ((newAmountMultiplied * accRewardPerShare) /
        if (pending > 0) {
            IERC20(rewardToken).safeTransfer(to, pending);
            emit LogOnReward(relicId, pending, to);

[M-01] onHooks do not account for the parents reward token (only onReward do)



As the documentation says: ”Reliquary’s system had two minor flaws that made it impossible to properly track its state from a rewarder. The functions merge, split and shift do change state but never call the rewarder, as opposed to, for example, withdraw, which calls the onWithdraw rewarder hook.”

If we put ourselves in the perspective of a developer discovering the code, he might think that the ParentRewardToken will be fully supported by the system, but this won't be the case. This can be misleading.


This is not a problem in your current setup because rewardMultiplier is set to 0. (ParentRewarder-Rolling.sol#L35). But I think the parent rewarder logic should be removed, or at least rewardMultiplier should be hardcoded to 0.

[L-01] withdrawAndHarvest() don't work since you don't call withdrawFromGauge() in it



If a gauge is enabled on a pool, withdrawAndHarvest() will don't work because withdrawFromGauge() is not called in it.

It’s a low because users can still call harvest() and withdraw() separately.


function withdrawAndHarvest(uint amount, uint relicId, address harvestTo) external override nonReentrant {
    if (amount == 0) revert ZeroAmount();

    (uint poolId, uint receivedReward) = _updatePosition(amount, relicId, Kind.WITHDRAW, harvestTo);

+		updatePoolWithGaugeDeposit(poolId);
+		withdrawFromGauge(poolId, amount);

    IERC20(poolToken[poolId]).safeTransfer(msg.sender, amount);

    emit ReliquaryEvents.Withdraw(poolId, amount, msg.sender, relicId);
    emit ReliquaryEvents.Harvest(poolId, receivedReward, harvestTo, relicId);

[L-02] Once enable, admin can't disable a gauge.



In case of a black swan event, or just if the gauge is not yielding any more, the admin should be able to disable the gauge investment.


Add this function in Reliquary:

function disableGauge(uint256 _pid) public onlyRole(OPERATOR) {
    DoubleStakingLogic.disableGauge(poolInfo, _pid);

Add this function in DoubleStakingLogic:

function disableGauge(
    PoolInfo[] storage poolInfo,
    uint256 _pid
) internal {
    poolInfo[_pid].gaugeInfo = GaugeInfo(false, IGauge(address(0));

[L-03] Anyone can delay the issuance of rewards at low cost




Only funding 1 wei of rewardToken in PoolReward and calling fundRewarder() will extend the distribution period of not issued funds.

Since anyone can call fundRewarder() , someone might take advantage of this.


  • Alice will have money to invest in 7 days
  • But the reward distribution will end in 7 days.
  • To get a part of this reward, Alice will fund PoolReward with 1 Wei and call fundRewarder() every day.
  • 7 days pass => The distribution period has been extended.
  • Alice can now invest her money and get the reward she was not supposed to get.



You may want to keep control of how the reward is funded. fundRewarder() in PoolReward should be limited.

function fundRewarder() external {
    uint256 balance = IERC20(rewardToken).balanceOf(address(this));
    totalRewards += balance;
